G200m™

G175s™

Smooth -no striations

no clip relief

no striations

with clip relief

Standard - with striations with clip relief

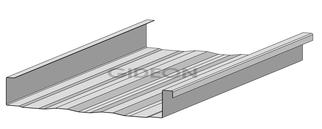

  • a.k.a. 2" mechanical seam, 2" single-lock, 2" double-lock.
  • Major ribs are 2" tall, 18" nominal on-center, 18" nominal coverage width.
  • Standard surface condition (as shown) features striations and clip relief.​
  • ​Fastens to substrate with a clip and screws.
  • Non-standard coverage widths are available upon request.
  • Weather-Tightness Warranty available upon approval from Technical Department.
  • ​Meets Engineered Metal Roof System criteria, contact Gideon Steel for details.
  • Determining if panels will be mechanically seamed as single-lock or double-lock may effect type of electric seamer and clips to be used.
  • 24 gauge   ▪ Prepainted   ▪ Galvalume   ▪ Cut-To-Length   ▪ UL Rated   ▪ Cool Color™

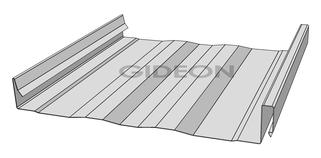

  • a.k.a. 1-3/4" snap-lock.
  • Major ribs are 1-3/4" tall, 18" nominal on-center, 18" nominal coverage width.
  • Standard surface condition (as shown) features striations and clip relief.​
  • ​Fastens to substrate with a clip and screws.
  • Non-standard coverage widths are available upon request.
  • Weather-Tightness Warranty available upon approval from Technical Department.
  • Meets Engineered Metal Roof System criteria, contact Gideon Steel for details.
  • 24 gauge   ▪ Prepainted   ▪ Galvalume   ▪ Cut-To-Length   ▪ UL Rated   ▪ Cool Color™

It is very important to select the correct Surface Condition for performance and aesthetics of your application.  Pictures shown above represents standard Surface Condition.  Panels can be made without striations and /or clip relief.  Pictures shown below demonstrates three different Surface Conditions available for G100s.  Type your paragraph here.

​Surface Conditions

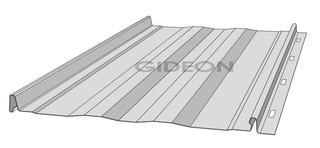

  • a.k.a. 1" snap-lock.
  • Major ribs are 1" tall, 16" nominal on-center, 16" nominal coverage width.
  • Standard surface condition (as shown) features striations and clip relief.
  • ​Features a perforated fastener flange in which screws are placed.  Adjacent panels overlay the fastener flange and snap lock into place hiding the low profile fasteners.
  • Non-standard coverage widths are available upon request.
  • 26 & 24 gauge   ▪ Prepainted   ▪ Galvalume   ▪ Cut-To-Length   ▪ UL Rated   ▪ Cool Color™

G100s™

Simply put, Concealed Fastener Panels hide or conceal the fasteners from being able to visually see them from the surface.  Panels are secured with clips or a fastener flange that is behind or underneath the panel surface.  Adjacent panels are either "snap locked" into place or require a mechanical seamer to secure them to roofing substrate.  These type of panels are also generically called Standing Seam or Architectural Panels.Type your paragraph here.

Concealed Faster Panel  /  ​Standing Seam / ​Architectural
