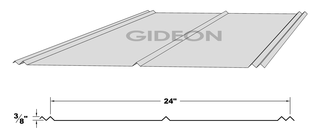

  • Major ribs are 1/2" tall.
  • 24" coverage width.
  • 29 & 26 gauge   ▪ Galvalume   ▪ Galvanized   ▪ Stock Lengths

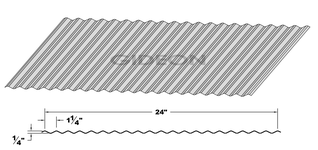

  • Major ribs are 1/4" tall, 1-1/4" on-center (crest to crest).
  • 24" coverage width when lapped on single rib.
  • 29 & 26 gauge   ▪ Galvalume   ▪ Galvanized   ▪ Stock Lengths

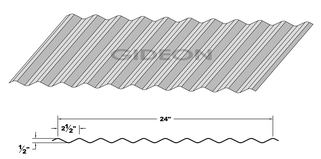

  • Major ribs are 1/2" tall, 2-1/2" on-center (crest to crest).
  • 24" coverage width when lapped on single rib.
  • 29 & 26 gauge   ▪ Galvalume   ▪ Galvanized   ▪ Stock Lengths

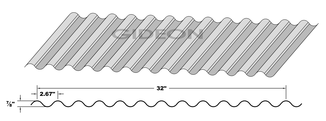

  • Major ribs are 7/8" tall, 2.67" on-center (crest to crest).
  • 32" coverage width when lapped on single rib.
  • 26, 24, 22 gauge   ▪ Prepainted   ▪ Galvalume   ▪ Cut-To-Length

5-V Crimp

Corrugated 1.25

Corrugated 2.5

  • Major ribs are 1-1/2" tall, 7.2" on-center,  36" coverage width.
  • ​​May have purlin bearing leg feature on under-lap side of panel.
  • 26, 24, 22 gauge   ▪ Prepainted   ▪ Galvalume   ▪ Cut-To-Length

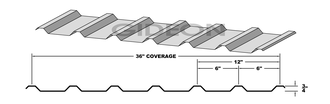

  • Major ribs are 3/4" tall, 6" on-center,  36" coverage width.
  • ​Panel is flat between the major ribs.
  • ​​May have purlin bearing leg feature on under-lap side of panel.
  • 26 gauge   ▪ Prepainted   ▪ Galvalume   ▪ Cut-To-Length

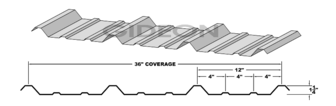

  • Major ribs are 1-1/4" tall, 12" on-center,  36" coverage width.
  • Two minor ribs are equally spaced between major ribs.
  • ​​Purlin bearing leg feature on under-lap side of panel.  PBR stands for Purlin Bearing Leg R-Panel.  This is not a necessary feature, but is helpful when installing #14 x 7/8 screws in the panel lap.
  • Enhanced Overlap Leg feature allows for increased weather-tightness.  Most other manufacturers do not have this feature.
  • ​26 & 24 gauge   ▪ Prepainted   ▪ Galvalume   ▪ Cut-To-Length   ▪ UL Rated   ▪ Cool Color™
  • Major ribs are 1-1/4" tall, 12" on-center,  36" coverage width.
  • Two minor ribs are equally spaced between major ribs.
  • ​​​Enhanced Overlap Leg feature allows for increased weather-tightness.  Most other manufacturers do not have this feature.
  • ​26 & 24 gauge   ▪ Prepainted   ▪ Galvalume   ▪ Cut-To-Length   ▪ UL Rated   ▪ Cool Color™

Corrugated 2.67

7.2 Panel

U-Panel

Gideon PBR

Gideon R-Panel

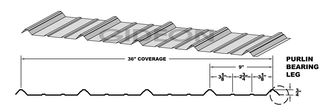

  • Major ribs are 3/4" tall, 9" on-center,  36" coverage width.
  • Two minor ribs are equally spaced between major ribs.  Strengthening rib on major rib.
  • ​Siphon Groove feature creates drain channel for added protection against leaks and increased Weather-Tightness.
  • Purlin bearing leg feature on under-lap side of panel.
  • Enhanced Overlap Leg feature allows for increased weather-tightness.  Most other manufacturers do not have this feature.
  • ​26 & 24 gauge   ▪ Prepainted   ▪ Galvalume   ▪ Cut-To-Length   ▪ UL Rated   ▪ Cool Color™

Gideon Tuff-Rib AG

Simply put Exposed Fastener Panels are a type of profile that when installed you see the fasteners (i.e. exposed) vs. hidden.  Some people refer to this type as a "through fastened panel".


Panels conform to ASTM A792 Galvalume substrate (base metal), Structural Quality Grade 80, Yield Strength 80,000 PSI minimum.  Available in acrylic coated Galvalume or wide selection of color by Valspar Weather XL and Valspar Fluropon PVDF paint systems.


Readily available in 26 gauge.  Inquire regarding availability in 24 and 22 gauge.

​ere.

​Exposed Fastener Panels
